Overview:

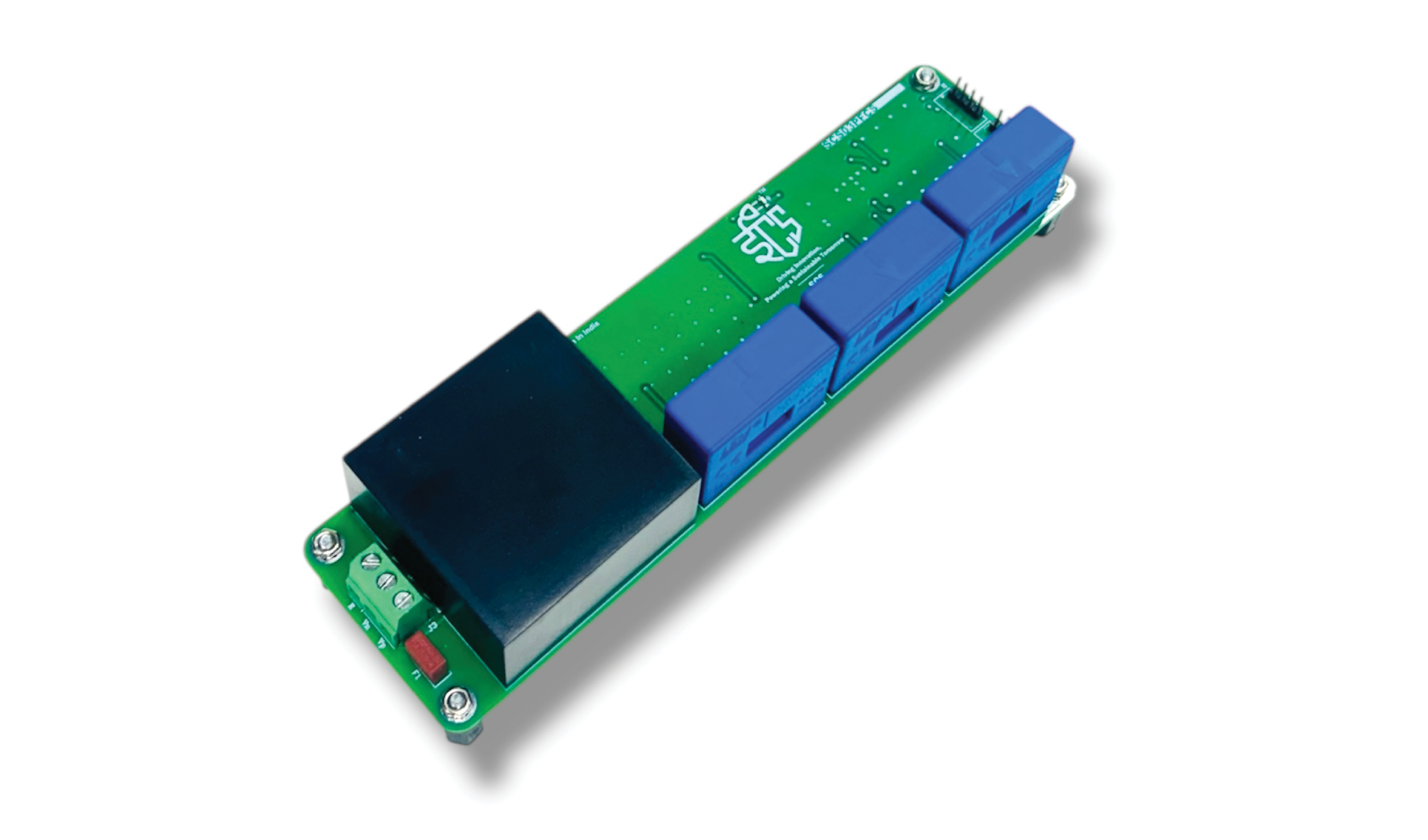

AC/DC universal current sensors board.
On board isolated power supplies.
Excellent accuracy and linearity.
Thermal and noise optimized PCB design.
Maximum 3 onboard current sensors (LEM make)
Single DC power source of 24V is required to power up the board.
Current sensing range 25A, 50A and 100A available.
Bi-polar sensor output between -5 to 5 volts.
Uni-polar sensor output between 0 to 3 volts with offset of 1.5 volts
Board can be power up with single phase 85-300Vac power supply.
LED indication for power on.
Applications:
PWM Converter
Variable Speed Drives
Renewable Energy
Industrial Power Supplies
